Product Description

Technical Specifications: ● Leveling: 25-point automatic leveling; ● Printing platform: 8.7 x 8.7 inches / 220 x 220 mm; ● Filament run-out detection: optional; ● Printing material: PLA / ABS / PETG & TPU; ● Nozzle size: ø 0.4 mm (replaceable); ● Nozzle temperature: ≤ 500 °F / 260 °C; ● Hot bed temperature: ≤ 230 °F / 110 °C; ● Printing speed: ≤100 mm/s (Max speed); ● Control panel: 2.4" LCD screen with a control knob; ● Z-axis: single threaded rod; ● Printing dimensions: 250 x 220 x 220 mm (HWD); ● Machine dimensions: 490 x 445 x 443 mm

Enjoy DIY, play with imagination: The step-by-step assembly process allows you to understand the various modules and parts of the printer in more detail. Funny DIY sessions, enjoy the assembly process and the sense of accomplishment of a successful challenge.

One-button leveling, precise and easy to use: Equipped with the self-developed Anycubic LeviQ auto-leveling system. Firmware algorithm compensation through 25-point precision detection. Easy to operate, very friendly to new users, entry-level users will also be able to easily achieve one-touch leveling and printing.

Spring steel magnetic build plate, easy model removal: The printing platform is made of spring steel that is resistant to abrasion, drops and bending. Once the printing is complete, the models can be removed by bending. The magnetic design is easy to install, allowing ultra-easy model removal.

Turn ideas into reality, every second counts: Typical print speed up to 60 mm/s; the maximum print speed of 100 mm/sec, quick to restore creativity.*Based on the test results of Anycubic lab., for reference only.

Bowden extruder for faster printing: Designed with separated bowden extruder. With the extruder and the hotend separated, the hotend is lighter, encountering less inertia while moving, allowing faster printing speed.

Smart sensors, no more fear of accidents: The power-off resuming and the filament run-out detection (optional) avoid printing failure caused by unexpected power-off/out of material, which can effectively reduce the waste of resources and time.

Compact design, large build volume: Compared to its predecessor Anycubic Mega S, the print volume has increased by 34.4% to reach 12.1 liters. The print size is 250 x 220 x 220 mm, the size of a standard size 5 soccer.

Knob adjustment, easy and effortless: Compared to using a screwdriver, the knob design XY axis belt tensioner makes it easy to adjust the belt tension. It is more convenient without tools and can be operated with hands only.

More choices of filaments: Anycubic provides various kinds and colors of filaments, which has even and smooth output, giving you more choices for your creativity.

Parts List

Base

Nozzle

Display screen

Filament

Filament holder

Spare Teflon Tube

Frame

User-manual

Lubricating oil

Spring washer

SD card

SD card reader

Power cord

Clip

Gasket

	Anycubic Kobra Go	Anycubic Kobra Neo	Anycubic Kobra
Technology	FDM	FDM	FDM
Build Volume	220220250mm	220220250mm	220220250mm
Bed Leveling	Anycubic LeviQ 25-point Automatic Leveling	Anycubic LeviQ 25-point Automatic Leveling	Anycubic LeviQ 25-point Automatic Leveling
X/Y/Z Positioning Accuracy	0.0125/0.0125/0.00125mm	0.0125/0.0125/0.00125mm	0.0125/0.0125/0.00125mm
Printing Speed	<100 mm/s	<100 mm/s	<100 mm/s
Layer Thickness	0.05 - 0.3 mm	0.05 - 0.3 mm	0.05 - 0.3 mm
Nozzle Temperature	Max 260 °C	Max 260 °C	Max 260 °C
Print Bed Temperature	Max 110 °C	Max 110 °C	Max 110 °C
Extruder	Bowden Separated	Direct Drive	Direct Drive
Filament Detection	Optional	Optional	Optional
Resume Printing	√	√	√
Printing Platform	One-sided PEI-coated Metal Steet	Double-sided PEI-coated Metal Steet	One-sided PEI-coated Metal Steet
Z-Axis	Single Thread Rod	Single Thread Rod	Single Thread Rod
Controls	2.4" LCD Screen & Control Knob	2.4" LCD Screen & Control Knob	4.3" LCD Touch Screen
Assembly	DIY Setup	5-Modular Setup	5-Modular Setup
Machine Dimension	445443490mm	445443490mm	445443490mm
Machine Weight	~7.3 kg	~7.4 kg	~7.5 kg

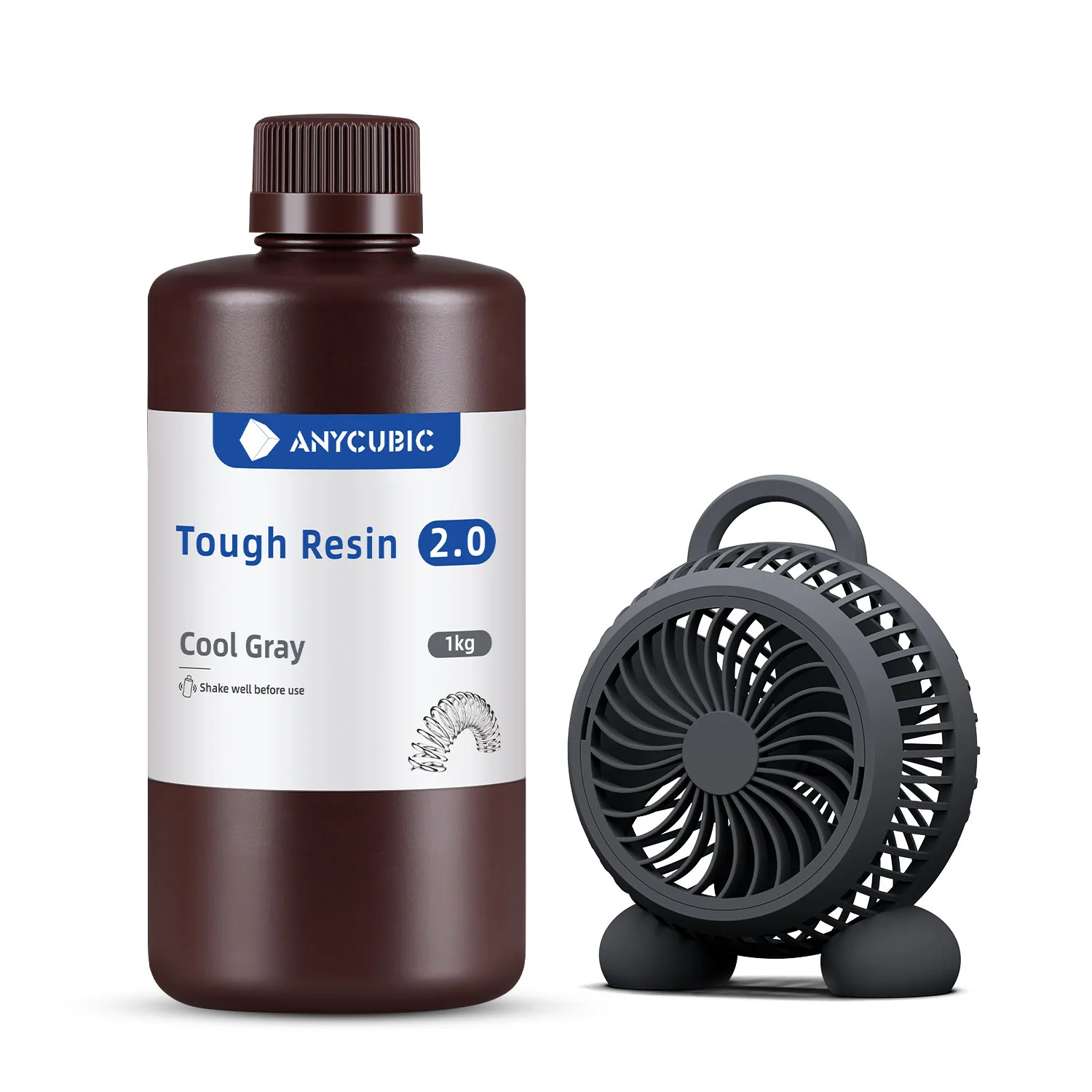

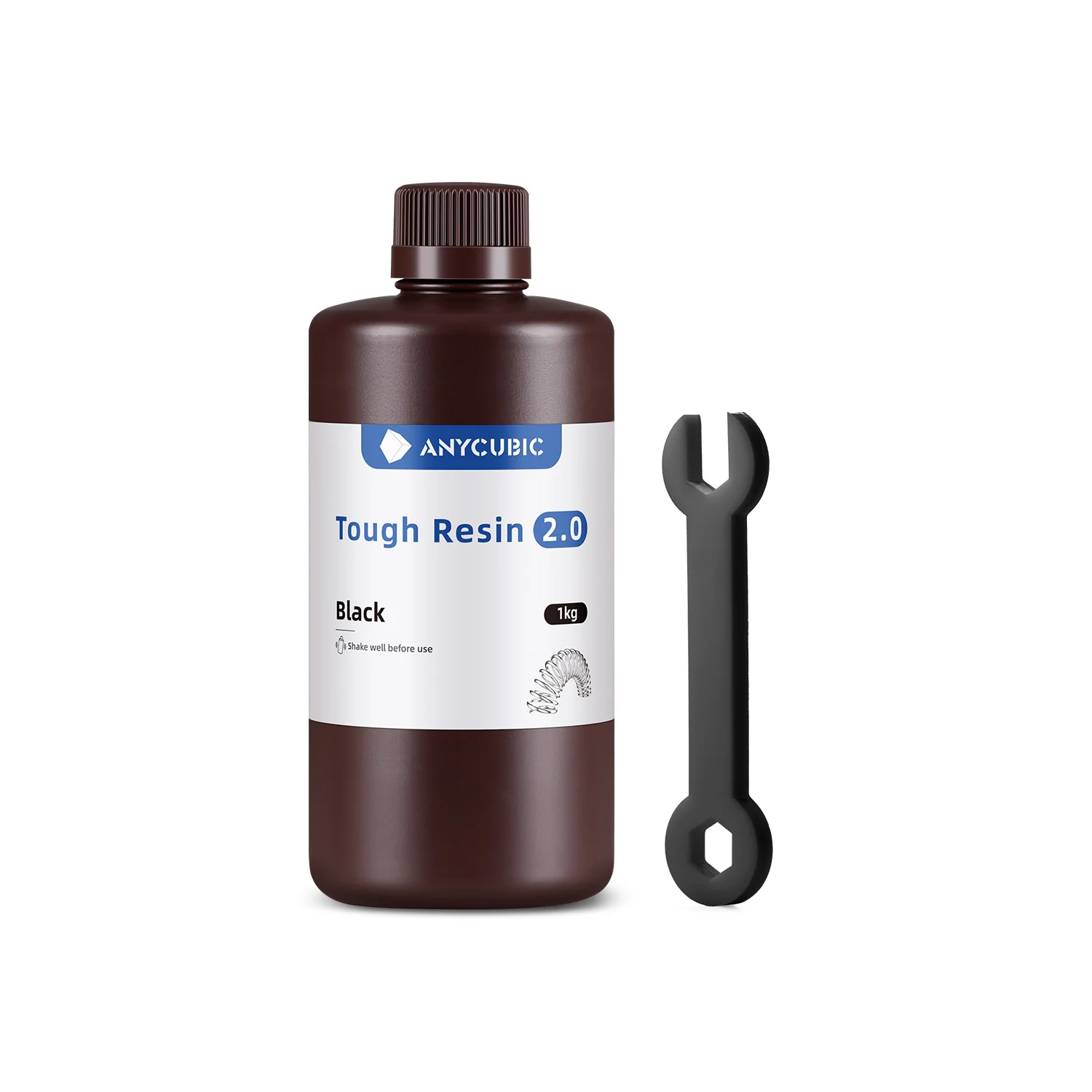

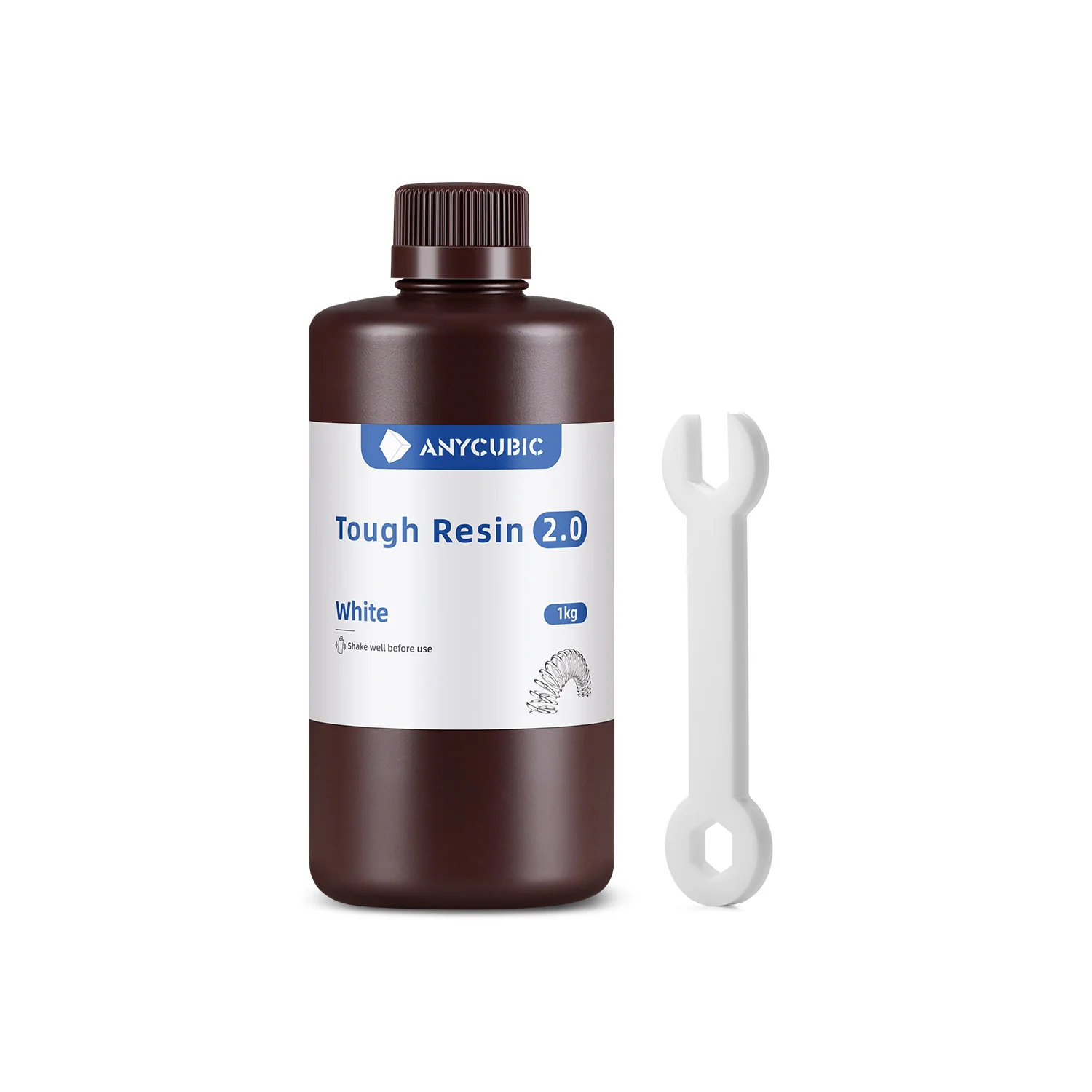

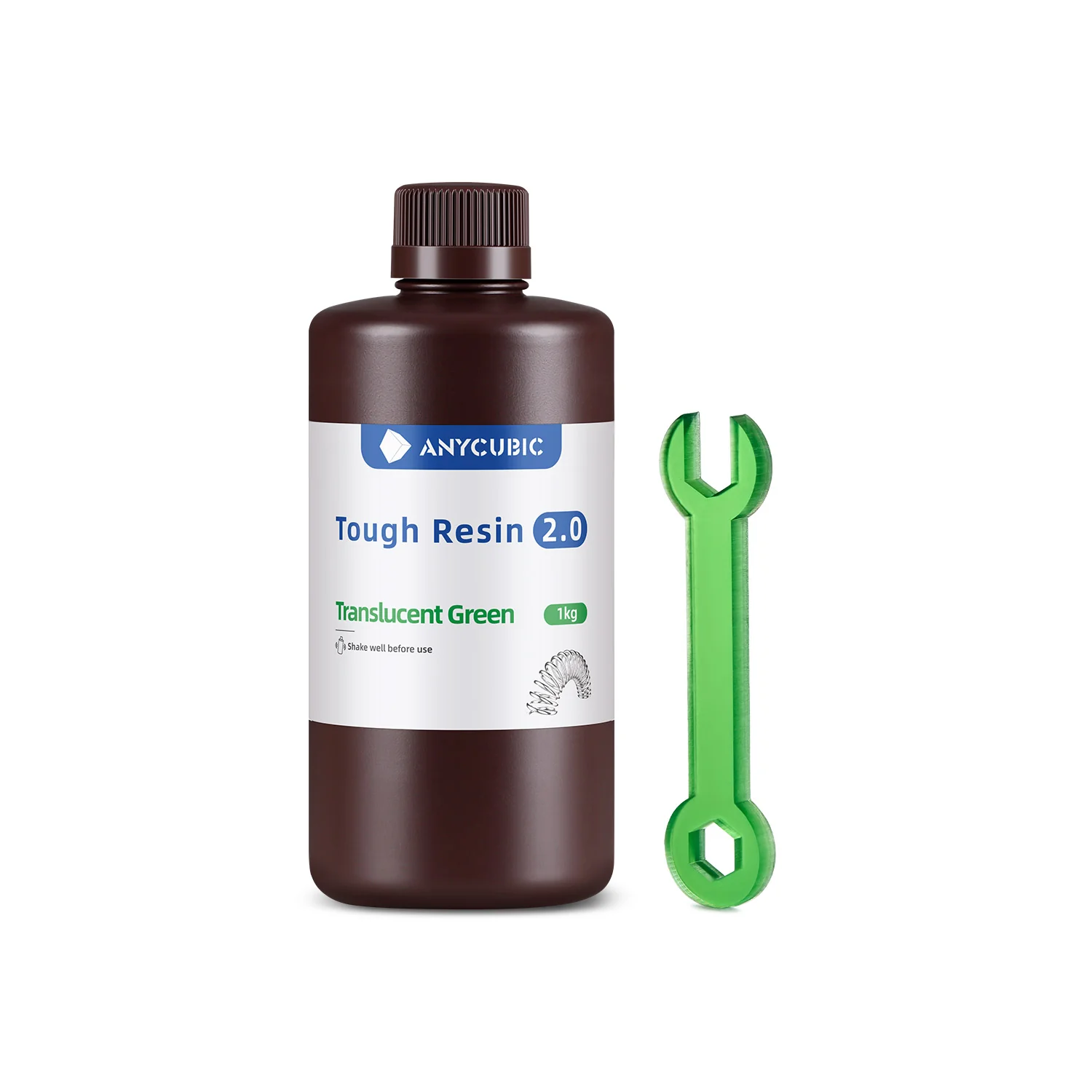

Tough Resin 2.0
